Electromagnetic Flow Meters - sizes 1/4" up to 56".
• 3 types of Sensors,
• Electrodes materials: Hastelloy C, Tantalum, Platin/Rhodium.
• Liner materials : PTFE, Hard- and Soft-Rubber, Halar.
• Accuracy: +0.25%
• Flowrange: 0.03 - 10 m/sec.
• Analog Output: 4-20 mA,   Pulses scalable and RS232.

• Suitable for liquids with suspended solids, for abrasive liquids and liquids at high temperature
• Flow Rate Range: 0.3 to 8 m/s, Pipe size from 2" to 16"
• Fittings for installation into all pipe materials

FlowX3 ULFUltra Low Flow Sensor

• Compact ultra-low flow sensor type ULF for use with aggressive and solid-free liquids
• Flow ranges : 1.5 to 100 l/h (0.0066 to 0.44 gpm)  /  6 to 250 l/h (0.0264 to 1.1 gpm)
• Construction materials: POM or ECTFE (Halar®) wetted parts

Paddlewheel Insertion Flow Sensors / Switches / Electonic Systems
• Flow Sensors / Switches for every kind of solid-free liquids.
• Flow ranges: 0.15 m/s to 8 m/s; sizes from 0.5" to 24"
• Electonic Systems convert signal from Flow Sensors into a display indication and 4...20mA for long distance transmission.


Hebrew Instructions

Fixed and Portable Transit Time Ultrasonic
Flow Meters
• Ultrasonic Clamp-on Flow meter are Non Penetrating Instruments
• The instrument is tolerant of liquids with small amounts of gas / air bubbles or suspended solids.
• Pipe type ultrasonic Flow Meter (Flange models)
• Hand Held Flow Meter
• Features:
  • Flow: 0 to 32 metres per second
  • Accuracy: ±0.5% of measured value for Flow cell

         ±1% of measured value at rate > 0.2 m/Sec
         for Clamp-on transducers
  • Pipe Size: 25mm to 6000mm (1 to 240")

Positive Displacement,Gear Flow Meters.
Turbine Flow Meters,
Flow Controllers and Monitors, for Control of industrial fluids. Ideally for: multi-viscosity fluids, aggressive fluids and fluids under high pressure.
Turbidity Meter (KPS) The turbidity sensor serves the optimizing of industrial production processe, fluid food, chemical and pharmaceutical fluids .

Open Channel Flow Meter
• Measurement and Control for a wide range of Flumes and Weirs.
• High frequency transducer dB Mach3.
• Display: 8 digit on-board totaliser; / 6 digit display of flowrate or head.
• 3 or 5 control relays for control choices.

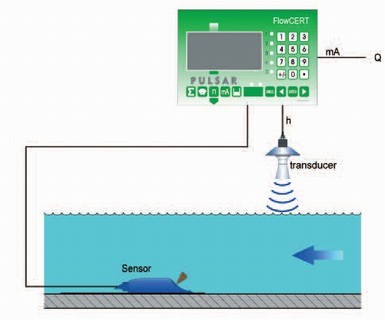

FlowCERT - Flow Measurement system.


• The most accurate Flow measurement system available.
• Consists of a dedicated control unit and Pulsar’s "Speedy velocity sensor".
• Accuracy and ease of operation.

• Analoge output and RS485 digital communications.
• Speedy is available either as a “wedge” sensor to be fitted to the
  bottom of a channel or pipe, or as a pipe sensor.

Pulsar's Beltweigher Integrator is ideal for all belt weighing applications. Six relays assignable to control, totalisation or alarm functions, plus analogue and digital outputs (Modbus/Profibus).
Application: 1,2, or 4 cell scales up to 4.5mV/V sensitivity.
Accuracy: 0.1% of full scale
Max separation: 150m to belt scale, 300m speed sensor.
Inputs: load cell, speed sensor (pulse train up to 65KHz),
5 digital inputs
